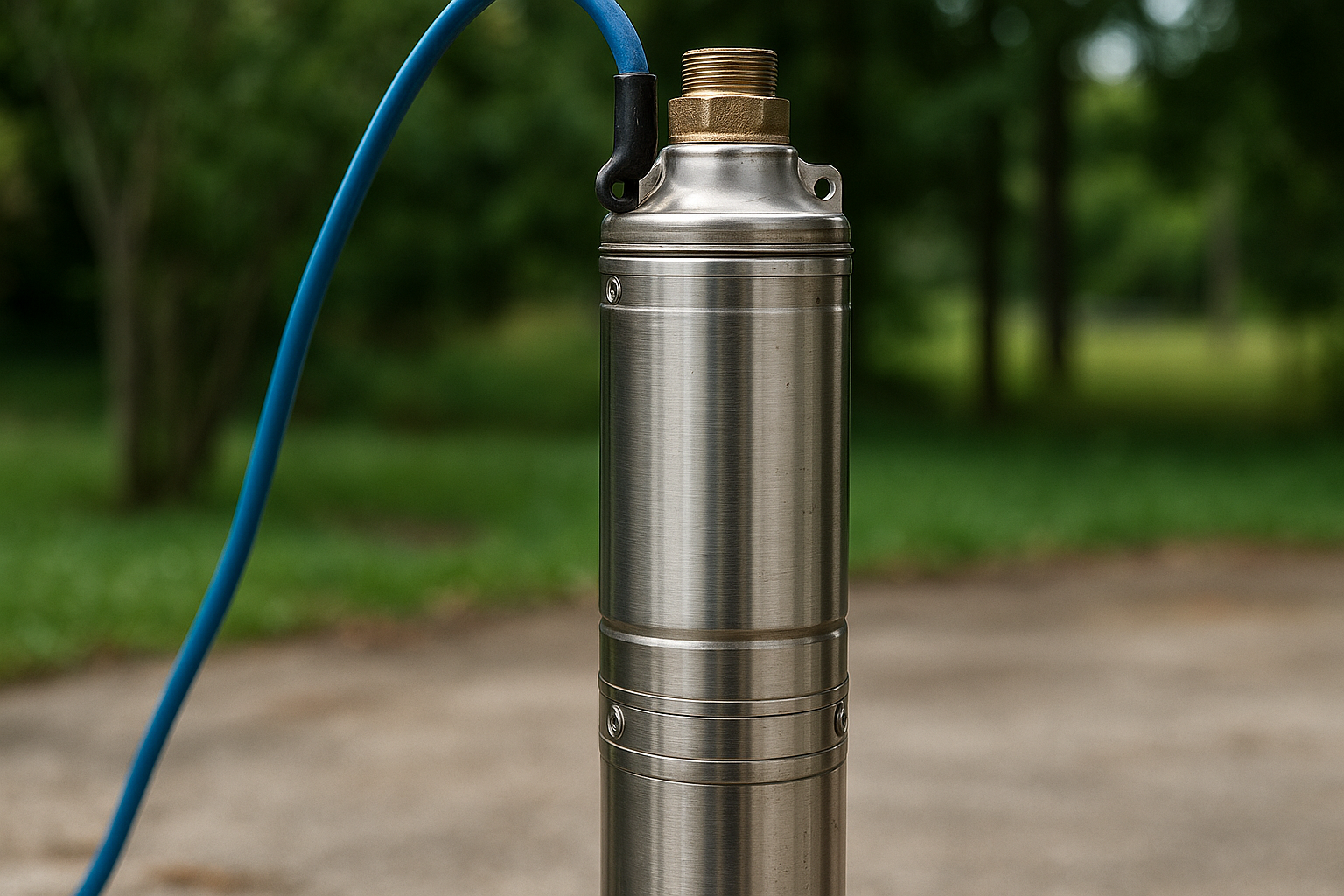

Torque Arrestor Guide: Protect Your Submersible Pump from Spin Damage

A torque arrestor is one of the most overlooked—yet essential—components of a submersible well pump system. This simple device, costing just $30 to $100, protects thousands of dollars worth of equipment from the violent rotational forces that occur every time your pump starts. In this guide, we'll explain what torque arrestors do, why your submersible pump absolutely needs one, and how to identify when yours may be failing.

Key Takeaways

What it does: Prevents pump spin and absorbs startup torque
Why you need one: Protects wiring, pipes, and motor from damage
Cost: $30-$100 for the part; prevents $2,000+ in repairs
Lifespan: 5-10 years depending on usage and water conditions
Signs of failure: Clicking sounds, tripped breakers, tangled wires

What Is a Torque Arrestor?

A torque arrestor (also called a torque stop, torque arrester, or well pump cable protector) is a rubber or composite device that wraps around the drop pipe of your submersible pump system. It expands outward to grip the inner walls of your well casing, essentially anchoring the pump assembly in place.

The device is designed to counteract Newton's third law of motion: for every action, there's an equal and opposite reaction. When your submersible pump motor spins its impellers in one direction to push water upward, the pump body wants to spin in the opposite direction. Without something to stop it, this rotational force transfers directly to your drop pipe, electrical wires, and safety rope.

Most torque arrestors are made from durable rubber or reinforced polymer with ribs or fins that compress against the casing wall. They're designed to grip firmly without scoring or damaging the casing interior, and they can handle the repeated stress of thousands of pump cycles.

Why Your Submersible Pump Needs a Torque Arrestor

Every time your submersible pump starts, it generates significant rotational force. In the first fraction of a second, before water starts moving through the system, this startup torque is at its peak. On a 1-horsepower motor, this initial torque can exceed 15 foot-pounds—enough to twist and damage components if left unchecked.

Here's what happens when a pump operates without proper torque control:

Wire Damage and Tangling

The electrical wires running from your pump to the surface are the first victims of uncontrolled spin. Each startup twists these wires slightly around the drop pipe. Over hundreds or thousands of cycles, the wires wrap tighter and tighter, eventually kinking, abrading against the pipe, and failing. Wire damage deep in a well is expensive to diagnose and repair.

Pipe Connection Failures

The threaded connections on your drop pipe weren't designed to handle repeated rotational stress. Without a torque arrestor, these connections can loosen over time, leading to leaks, lost water pressure, or complete disconnection. In the worst cases, the pump can separate from the piping and drop to the bottom of the well—an expensive retrieval job.

Motor Bearing Wear

The violent startup movement isn't just hard on external components—it also stresses the pump motor's internal bearings. Motors that experience uncontrolled torque at every startup tend to fail years earlier than properly installed systems.

Safety Rope Damage

Many pump installations include a safety rope attached to the pump as a backup retrieval method. Repeated spinning can wrap this rope around the pump or pipe, making it useless in an emergency and potentially causing additional complications.

Installation Requirements for Torque Arrestors

Proper installation of a torque arrestor is straightforward but must be done correctly to be effective. Here are the key requirements:

Placement Location

The primary torque arrestor should be installed immediately above the pump motor, typically within 2-3 feet. This positions it at the source of the torque for maximum effectiveness. The arrestor slides over the drop pipe before the pump is lowered into the well.

Multiple Arrestors for Deep Wells

For wells deeper than 200 feet, or for pumps larger than 1.5 horsepower, multiple torque arrestors may be needed. A common configuration places one arrestor near the pump and additional units every 100-200 feet up the drop pipe. This distributes the torque absorption and provides additional stability.

Proper Sizing

The torque arrestor must match both your well casing diameter and your drop pipe size. Standard residential wells typically use:

4-inch casing: Most common for residential wells; uses standard torque arrestors
5-inch casing: Requires 5-inch specific models
6-inch casing: Needs larger, heavy-duty arrestors; common in agricultural wells

Signs of a Missing or Failed Torque Arrestor

A worn or missing torque arrestor doesn't always announce itself obviously. However, several warning signs can indicate a problem:

Warning Signs to Watch For

Clicking or thumping sounds when the pump starts
Frequent breaker trips or ground faults
Intermittent pump operation—works sometimes, not others
Decreased water pressure that gradually worsens
Pump running continuously without building pressure
Visible wire damage if pump is pulled for service

If you're experiencing any of these symptoms, it's worth having a professional inspect your system. During a well inspection, a technician can pull the pump and examine the torque arrestor condition along with other components.

Types of Torque Arrestors

Several torque arrestor designs exist to handle different applications:

Standard Rubber Arrestors

The most common type features a rubber body with multiple fins or ribs that grip the casing wall. These work well for most residential applications with pumps up to 1.5 horsepower.

Heavy-Duty Arrestors

For larger pumps (2 HP and above) or challenging conditions, heavy-duty models offer more aggressive gripping surfaces and stronger materials. These cost more but provide better protection for high-torque applications.

Cable Guard Combo Units

Some torque arrestors include integrated cable guards that help route and protect electrical wires. These well pump cable protector combinations provide both torque control and wire management in a single unit.

Centralizers

While not true torque arrestors, centralizers serve a related purpose by keeping the pump centered in the casing. They're often used in combination with torque arrestors in deep wells or wells with irregular casings.

Torque Arrestor Costs: A Smart Investment

Torque arrestors represent one of the best value propositions in well equipment:

Typical Costs

Standard 4" torque arrestor: $30-$50
Heavy-duty models: $50-$75
Large 6" casing models: $60-$100
Cable guard combo units: $40-$80

Compare these modest costs to the potential damage a missing torque arrestor can cause:

Wire repair/replacement: $500-$1,500
Pump motor replacement: $800-$2,500
Complete pump replacement: $1,500-$4,000+
Pump retrieval from well bottom: $1,000-$3,000

A $50 torque arrestor can easily prevent $3,000+ in damage. That's why every reputable well pump installer includes torque arrestors as standard equipment—not optional add-ons.

When to Replace Your Torque Arrestor

Torque arrestors typically last 5-10 years, depending on how often your pump cycles and your water quality. Plan to replace them whenever the pump is pulled for service—the labor to install a new one is minimal when the pump is already out of the well.

Conditions that accelerate wear include:

High pump cycling (undersized pressure tank)
Sandy or silty water that abrades rubber
Corrosive water chemistry
Oversized pump motors generating extra torque

Concerned About Your Well Pump?

If you're experiencing pump problems or haven't had your system inspected in years, our technicians can evaluate your torque arrestor and entire pump assembly. We service wells throughout San Diego and Riverside counties with fast, honest service.

Call (760) 440-8520

Frequently Asked Questions

What does a torque arrestor do on a submersible pump?

A torque arrestor prevents your submersible pump from spinning when it starts up. When the pump motor kicks on, it generates rotational force (torque) that tries to spin the pump body in the opposite direction. The torque arrestor grips the inside of the well casing and absorbs this startup shock, protecting your pump, wiring, and drop pipe from damage.

How much does a torque arrestor cost?

Torque arrestors typically cost between $30 and $100 depending on the size and material. Standard rubber models for 4-inch casings run $30-$50, while heavy-duty versions for larger pumps or bigger casings cost $50-$100. The part cost is minimal compared to the pump damage it prevents, which can cost $2,000-$5,000 or more to repair.

How do I know what size torque arrestor I need?

Torque arrestor size is determined by your well casing diameter and pump motor size. Most residential wells use 4-inch, 5-inch, or 6-inch casings. Check your well records or measure the casing opening. The torque arrestor package will list compatible casing sizes and motor horsepower ratings. When in doubt, a well professional can identify the correct size during a service call.

Can a missing torque arrestor damage my well pump?

Yes, operating a submersible pump without a torque arrestor can cause serious damage over time. Without one, each startup causes the pump to twist violently, which can wrap and damage electrical wires around the drop pipe, loosen pipe connections, wear out motor bearings prematurely, and in severe cases, cause the pump to detach from the piping entirely.

Where should a torque arrestor be installed on a submersible pump?

The torque arrestor should be installed immediately above the pump motor, typically within 2-3 feet of the pump itself. Some installations use multiple arrestors—one near the pump and additional units every 100-200 feet for deep wells. The arrestor slides over the drop pipe and expands to grip the well casing walls, held in place by the pump assembly's weight.

The Bottom Line

A torque arrestor is a small investment that provides big protection for your submersible pump system. At $30-$100, it's one of the most cost-effective components in your entire well setup. If you're installing a new pump, make sure a quality torque arrestor is included. If your existing system is showing signs of torque-related problems—clicking sounds, wire damage, or intermittent operation—it may be time for an inspection.

Don't let a worn $50 part destroy a $3,000 pump. Regular maintenance and prompt replacement of worn torque arrestors will keep your well system running smoothly for years to come.
