Solar Well Pump Systems: Complete Guide to Solar-Powered Water Wells

Every solar well pump system consists of five core components working together:

• Solar Photovoltaic (PV) Panels: Convert sunlight into direct current (DC) electricity. Modern panels are 18-22% efficient, producing 300-400 watts each. Arrays typically consist of 4-12 panels mounted on ground racks, pole mounts, or rooftop installations, angled for optimal sun exposure (typically 30-35° tilt in Southern California).
• Charge Controller (MPPT or PWM): Regulates power flow from panels to pump and batteries. Maximum Power Point Tracking (MPPT) controllers are 20-30% more efficient than Pulse Width Modulation (PWM) controllers, especially critical for solar pump applications where you want to extract maximum energy from every photon hitting your panels.
• Pump Controller: Protects the pump from damage by preventing dry-run conditions (running when well is empty), managing soft-start sequences to reduce electrical surge on startup, and adjusting pump speed based on available solar power throughout the day. This intelligence extends pump life dramatically.
• Batteries (Optional): Store excess solar energy for use during cloudy weather, night pumping, or peak demand. Deep-cycle batteries (AGM, Gel, or Lithium) can provide 1-5 days of backup power. However, many systems skip batteries entirely, pumping only during daylight and storing water instead of electricity.

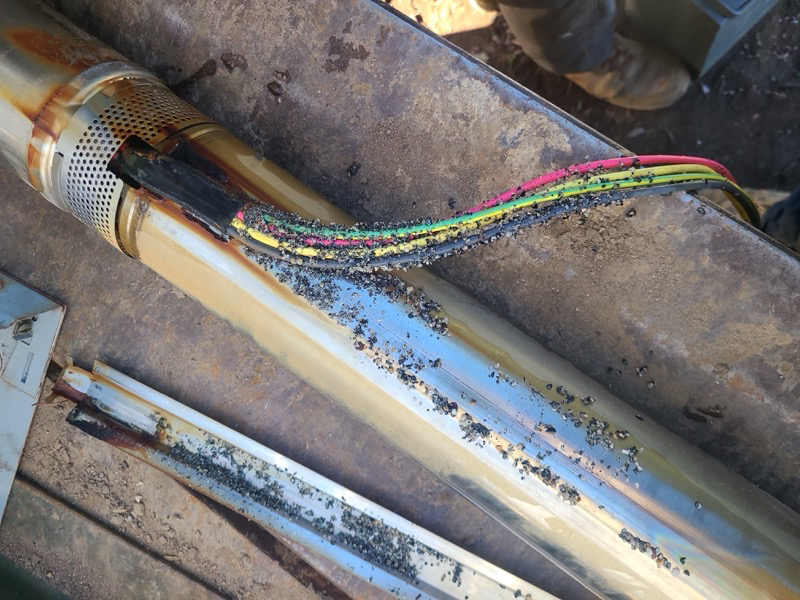

• Submersible Pump: The workhorse—installed down in the well, submerged in water. DC pumps (24V, 48V, or 120V DC) run directly on solar power. AC pumps (120V or 240V AC) require an inverter but are available in larger sizes for high-demand applications. Pumps are rated by horsepower (HP), flow rate (GPM), and total dynamic head (TDH) capacity.

Step 1: Sunlight Strikes Solar Panels

Photovoltaic cells in the panels absorb photons from sunlight, exciting electrons and creating DC electrical current. Panel output varies throughout the day—minimal at dawn/dusk, maximum at solar noon when the sun is perpendicular to the panel surface. A 300W panel might produce 50W at 7am, 280W at noon, and 40W at 6pm.

Step 2: Power Flows to Charge Controller

The MPPT charge controller monitors panel voltage and current, continuously adjusting to extract maximum power even as sun angle and intensity change. It also regulates charging of battery bank (if present) and prevents overcharging damage. Controllers display system status—panel voltage, battery state of charge, current output—allowing monitoring of system health.

Step 3: Pump Controller Receives Power

The pump controller determines if sufficient power is available to start the pump (typically requires 70-80% of rated power minimum). It checks for dry-well conditions using float switches or pressure sensors. Once conditions are safe, it initiates a soft-start sequence, gradually ramping up pump speed to avoid electrical and mechanical shock. As available solar power fluctuates, the controller varies pump speed—pumping faster at midday, slower in morning/evening.

Step 4: Pump Lifts Water

The submersible pump uses centrifugal force (multiple impellers stacked in stages) to push water upward through drop pipe. Each impeller stage adds pressure. A 10-stage pump for a 400-foot well has 10 impellers, each contributing roughly 40 feet of lift. Water travels up the drop pipe and exits at the wellhead into your pressure tank or storage system.

Step 5: Water Storage and Distribution

Most solar pump systems pump to storage tanks (1,500-5,000 gallons typical) rather than directly pressurizing household plumbing. This allows the pump to run only during peak sun hours, storing enough water for 24-hour use. A separate pressure pump (much smaller, 1/2 HP typical) draws from the storage tank to supply pressurized water to the house, irrigation, or livestock troughs. This two-pump approach is more efficient and reliable than asking the deep well pump to maintain constant household pressure.

How DC Pumps Work: DC pumps run directly on the DC electricity produced by solar panels without needing an inverter. This direct connection eliminates conversion losses and simplifies the system.

Advantages:

• Higher efficiency: 15-25% more efficient than AC systems because there's no inverter loss (inverters waste 5-15% of power as heat)
• Lower cost: No inverter needed saves $800-$2,500
• Simpler system: Fewer components means fewer potential failure points
• Better performance in low light: DC pumps with MPPT controllers can operate effectively even at 30-40% of full sun, starting earlier in morning and running later in evening than AC systems
• Quieter operation: DC motors generally run smoother and quieter than AC motors
• Longer lifespan: Fewer electrical components and lower operating temperatures extend pump life

Disadvantages:

• Limited power range: DC pumps typically max out at 3 HP (larger models are rare and expensive)
• Lower flow rates: Practical limit of about 15-20 GPM for most DC pumps
• Depth limitations: Challenging to pump from wells deeper than 600 feet with DC pumps
• Higher pump cost: DC pumps themselves cost 10-30% more than equivalent AC pumps (though total system cost is still lower)
• Can't use grid power as backup: Without an inverter, you can't easily switch to grid/generator power if needed

Best for: Residential off-grid homes, small ranches, wells under 500 feet deep, applications needing 2-15 GPM, and situations where simplicity and reliability are priorities over high flow rates.

How AC Pumps Work: AC pumps require an inverter to convert DC solar power into AC electricity. This allows use of standard AC submersible pumps—the same pumps used in grid-connected wells.

Advantages:

• Higher power available: AC pumps available up to 20+ HP for deep wells or high GPM requirements
• Higher flow rates: Can achieve 20-50+ GPM for agricultural or commercial applications
• Greater depth capability: Can pump efficiently from wells 600-1,000+ feet deep
• Lower pump cost: Standard AC pumps are mass-produced and less expensive than DC pumps
• Dual power capability: Easy to switch between solar, grid, and generator power sources for maximum reliability
• Wider selection: More pump brands, models, and service providers available

Disadvantages:

• Lower efficiency: Inverter losses reduce overall system efficiency by 10-20%
• Higher system cost: Inverter adds $1,200-$3,500 to system cost; efficiency loss requires more solar panels
• More complex: Additional component (inverter) adds complexity and potential failure point
• Poor low-light performance: AC systems typically need 60-70% of full power to start pump, reducing pumping hours per day
• Higher maintenance: Inverters require occasional service and have 10-15 year lifespan (shorter than panels or pumps)

Best for: Large ranches and agricultural operations, deep wells (500-1,000 feet), high-flow applications (15+ GPM), situations requiring grid/generator backup, and installations where professional support for standard AC pumps is desired.

Design: Cylindrical pump (typically 3-4 inches diameter) that fits inside well casing, submerged below water level. Multi-stage centrifugal design with 5-30 impellers depending on depth requirements. Permanently sealed motor rated for continuous water immersion.

Installation: Lowered into well on drop pipe (typically 1-1.5 inch diameter), secured with safety cable, connected to power cable running up to surface. Pump sits 10-20 feet below lowest expected water level to prevent running dry.

Performance: Excellent for depths 100-500 feet (sweet spot for solar efficiency). Can handle up to 650 feet with sufficient solar array. Flow rates 3-15 GPM typical for residential applications. Extremely reliable—designed for 10-20 years of continuous operation.

Pros: Handles deep wells, protected from weather and freezing, quiet operation (you can't hear it), no priming needed (always submerged), efficient for high lift applications.

Cons: Difficult to service (must pull from well), higher initial cost than surface pumps, requires professional installation in most cases.

Design: Pump sits above ground level, drawing water through suction pipe. Centrifugal or jet pump design. Available in larger sizes than submersible pumps for high-flow applications.

Installation: Mounted on concrete pad or pump house floor near water source. Intake pipe (foot valve) submerged in water. Easier DIY installation than submersible pumps.

Performance: Limited to maximum 25 feet of suction lift (physics limitation—atmospheric pressure can only push water 34 feet maximum, practical limit is lower). Excellent for shallow wells, ponds, and surface water. High flow rates possible (10-50+ GPM).

Pros: Easy to service (accessible at ground level), lower cost, higher flow rates available, easier DIY installation, can self-prime with proper setup.

Cons: Limited to shallow applications, exposed to weather (needs protection), requires priming, noisier operation, less efficient for deep lift, vulnerable to freezing.

Typical uses: Irrigation from ponds or streams, livestock watering from shallow wells, transfer pumping from storage tanks, filling troughs from springs.

Design: Compact pressure pump that increases water pressure in existing plumbing. Typically small (1/4 to 1 HP), high-speed pumps designed for continuous or on-demand operation.

Application: Used downstream of storage tanks or existing wells where pressure is insufficient. Common in two-pump solar well systems: deep well solar pump → storage tank → solar booster pump → household pressure system.

Performance: Adds 20-60 PSI to existing supply. Flow rates 3-30 GPM depending on size. Very efficient for pressure boosting (doesn't lift water, just pressurizes it).

Typical uses: Pressurizing water from storage tanks, increasing pressure for multi-story homes, boosting flow for irrigation systems, compensating for pressure loss in long pipe runs.

Calculate your total daily water requirements:

• Household: 50-100 gallons per person per day (200-400 gallons for family of 4)
• Livestock: See our livestock water requirements guide (horses: 10 gal/day, cattle: 15 gal/day, etc.)
• Irrigation: Varies widely; vegetable garden 200-500 gal/day, small orchard 500-1,500 gal/day
• Safety margin: Add 25-50% for peak demand days and future growth

Example: Family of 4 (300 gal) + 5 horses (50 gal) + small garden (200 gal) = 550 gallons daily. Add 30% safety margin = 715 gallons per day needed.

Convert daily gallons to GPM based on available pumping hours:

Formula: GPM = (Daily gallons needed) ÷ (Peak sun hours × 60 minutes)

Southern California averages 5.5 peak sun hours daily (yearly average). But your pump won't run at full capacity for all 5.5 hours—it ramps up and down. Effective pumping time is typically 4-5 hours at full GPM equivalent.

Conservative approach: Use 4 hours of effective full-power pumping.

Example: 715 gallons ÷ (4 hours × 60 min) = 715 ÷ 240 = 3 GPM minimum

Recommendation: Size pump for 1.5-2X calculated minimum for faster tank filling and cloudy-day buffer. In this example, specify 5-6 GPM pump.

TDH is the total resistance the pump must overcome, measured in feet. It includes:

• Vertical lift: Distance from pumping water level to discharge point (well depth + any elevation gain to storage tank)
• Pressure requirement: PSI × 2.31 = feet. (40 PSI = 92 feet, 60 PSI = 139 feet)
• Friction losses: Resistance in pipes, fittings, valves. Typically 5-15% of lift for properly sized pipe. Use larger diameter pipe to reduce friction.

Example calculation:

• Static water level: 150 feet below ground
• Drawdown when pumping: 20 feet (well level drops when pumping)
• Pumping water level: 150 + 20 = 170 feet
• Elevation to storage tank: 30 feet above ground
• Vertical lift: 170 + 30 = 200 feet
• Desired tank pressure: 40 PSI = 92 feet
• Friction losses: 15 feet (estimated 7%)
• Total TDH: 200 + 92 + 15 = 307 feet

Your pump must be rated for at least 307 feet of head at your desired GPM flow rate.

Using our example requirements (5-6 GPM at 307 feet TDH):

Look at pump performance curves from manufacturers. For this application, a typical match would be:

• Grundfos SQFlex 2.5-2: Rated 6 GPM at 300 feet TDH, operates on 300-1,800W solar input
• Lorentz PS2-600: Rated 5 GPM at 330 feet TDH, operates on 200-600W solar input
• SunPumps SDS-D-135: Rated 5 GPM at 280 feet TDH, operates on 24V DC at 400-600W

Each manufacturer provides detailed performance curves showing GPM output at various head pressures and solar power levels. Study these carefully—pump output varies significantly based on power available.

Panel sizing formula:

Required Wattage = (Pump Wattage at Operating Point) × (Run Hours per Day) ÷ (Peak Sun Hours) × (Safety Factor 1.2-1.3)

Example: Using the Lorentz PS2-600 which operates optimally at 500W input:

Required Wattage = (500W × 5 hours) ÷ 5.5 hours × 1.25 = 568W of solar panels

Panel selection: Two 300W panels = 600W total capacity (slightly over requirement, good for cloudy days and panel degradation over time)

Why the 1.2-1.3 safety factor?

• Panel output degrades 0.5-1% per year (20-year panels will produce 85-90% of rated capacity at end of life)
• Dirt, dust, and pollen reduce output 3-8% even with periodic cleaning
• Non-optimal sun angles (morning/evening, winter) reduce output
• Wire resistance causes 2-5% power loss
• Temperature effects (panels lose efficiency in heat—ironic but true)

Charge Controller: Must handle total panel wattage and voltage. For our example with 600W of panels:

Two 300W panels at 36V each = 16.7 amps per panel × 2 = 33.4 amps total. Choose MPPT controller rated for 40-50 amps at 36-48V. Cost: $300-$600.

Pump Controller: Often integrated with the pump or sold as matched set. Must provide:

• Dry-run protection (shuts off pump if well goes dry)
• Soft-start capability (gradual voltage ramp-up)
• Variable speed control (matches pump speed to available solar power)
• Over-current and over-voltage protection
• Float switch input (stops pump when storage tank is full)

Many quality pumps (Grundfos, Lorentz) include integrated controllers. Budget pumps may require separate controllers. Cost: $200-$800 if separate.

If you choose battery backup, size based on desired days of autonomy:

Battery Capacity (Amp-Hours) = (Daily watt-hours needed) × (Days of backup) ÷ (System voltage × Depth of discharge × Inverter efficiency)

Example: 1 day of backup for 500W pump running 5 hours

Daily watt-hours = 500W × 5 hours = 2,500 Wh

Battery Ah = 2,500Wh × 1 day ÷ (48V × 0.5 DOD × 0.85 efficiency) = 123 Ah

Choose: Two 48V, 100Ah batteries in parallel = 200Ah total (provides 1.6 days of backup with healthy margin)

Battery costs: AGM batteries: $300-$500 per 100Ah. Lithium batteries: $700-$1,200 per 100Ah (last longer, more efficient, lighter, but higher upfront cost).

Cost-Saving Strategies

• DIY panel mounting: Save $400-$1,000 by installing ground racks yourself (basic carpentry skills)
• Skip batteries: Save $800-$3,500 by using direct-drive with storage tanks
• Buy panels in bulk: Purchase solar panels through wholesale distributors for 20-30% savings
• Choose DC over AC: Save $1,000-$2,500 on inverter and associated components
• Pump installation only: Hire professional for pump work ($800-$1,500), DIY the solar array
• Value brand pumps: RPS or SunPumps instead of Grundfos saves $500-$1,500 (still reliable, just not premium)

How it works: Solar panels power the pump directly during daylight hours. Water is pumped into large storage tanks (typically 1,500-5,000 gallons). A separate small pressure pump draws from the storage tank to supply the house or irrigation system with pressurized water 24/7.

Advantages:

• Lower cost: Eliminates $800-$3,500 battery bank expense
• Higher efficiency: No battery charging/discharging losses (batteries waste 10-20% of energy)
• Zero battery maintenance: No battery monitoring, watering, or replacement every 5-10 years
• More storage capacity: 3,000 gallons of water provides 3-7 days of backup vs 1-2 days from batteries
• Simpler system: Fewer electrical components, easier troubleshooting
• Better ROI: Money saved on batteries can buy larger storage tanks or more solar panels

Disadvantages:

• No night pumping: Well pump only runs during daylight (but storage provides 24/7 water access)
• Storage tank required: Need space for large tank(s), plus installation cost $800-$3,000
• Reduced performance on cloudy days: Less water pumped during overcast periods (batteries provide buffer)
• Requires second pump: Need small booster/pressure pump ($400-$900) to deliver water from tank to house

Best for: Most residential and ranch applications, off-grid homes with space for storage tanks, cost-conscious installations, locations with reliable sunshine (Southern California ideal).

How it works: Solar panels charge a battery bank during the day. Batteries provide power to run the pump 24 hours a day, including night and cloudy periods. Pump can supply water directly to pressurized plumbing or to storage tanks.

Advantages:

• 24-hour pumping capability: Can pump at night or during cloudy weather
• More consistent flow: Batteries smooth out power fluctuations from changing sun conditions
• Better for low-yield wells: Wells that recover slowly can be pumped continuously at low GPM
• On-demand water possible: Can pump directly to pressure system for instant water (no storage tank lag)
• Cloudy weather buffer: 1-3 days of power storage provides water during extended overcast periods

Disadvantages:

• Higher cost: Battery banks add $800-$3,500 to system cost
• Lower efficiency: 10-20% energy loss in battery charging/discharging cycles
• Ongoing maintenance: AGM/flooded batteries need monitoring; all batteries need eventual replacement
• Shorter lifespan: Battery banks last 5-10 years vs 20-25 years for solar panels and pumps
• Replacement costs: Budget $600-$2,000 every 5-10 years for new batteries
• Temperature sensitivity: Battery performance degrades in extreme heat or cold

Best for: Wells with low recovery rates requiring continuous pumping, locations with frequent cloudy weather, applications requiring night watering (rare), installations where storage tanks aren't feasible (limited space, freezing concerns).

Some systems combine elements of both approaches: primary pumping is direct-drive to storage tanks, but a small battery bank provides limited night pumping capability or powers a pressure pump for on-demand household water.

Example configuration: 8-panel solar array → MPPT controller → small battery bank (200-400 Ah) → submersible pump → 2,500-gallon storage tank → pressure pump (can run on batteries at night).

This provides 90% of the efficiency and low cost of direct-drive systems while offering limited battery backup for critical needs. However, it adds complexity and cost. Most users find pure direct-drive or pure battery systems simpler and more cost-effective.

Perfect fit because: Remote pastures often lack grid power, livestock need consistent but modest flow rates (5-15 GPM typical), water demand is predictable and seasonal, and solar pumping + storage tanks matches livestock watering patterns perfectly.

Typical setup: 6-8 solar panels (1,800-2,400W) → 2 HP DC submersible pump → 300-foot well → 2,500-gallon storage tank → gravity-fed or float-valve livestock troughs. Pump runs 4-6 hours daily during sun, providing 1,500-2,500 gallons for 30-50 head of cattle or 25-50 horses.

ROI drivers: Eliminating generator fuel costs ($200-$500/month), no power line installation ($15,000-$50,000), and reduced labor (no daily generator starting/fueling). Payback typically 1-3 years.

See our comprehensive ranch water well guide for detailed livestock water requirements and system sizing.

Perfect fit because: Irrigation needs peak during sunny summer months (perfectly matched to solar output), drip irrigation requires moderate pressure and flow (well-suited to solar pumps), and water can be pumped to storage during the day and used for irrigation 24 hours.

Typical setup: Larger arrays (10-16 panels, 3,000-4,800W) for agricultural scale → 3-5 HP AC pump with inverter → 250-400 foot well → 5,000-10,000 gallon storage tank → drip irrigation or sprinkler system covering 2-10 acres depending on crops.

Limitations: Solar pumps struggle with very high GPM requirements (>20 GPM becomes expensive). If you need to irrigate 50+ acres with high water demand crops, conventional pumps may be more economical. But for vineyards, orchards, vegetable operations under 10-15 acres, solar is ideal.

ROI drivers: Eliminating monthly electric bills ($150-$500 for irrigation pumps), leveraging federal and state agriculture solar incentives, and positioning for sustainable/organic certification (solar irrigation is valued in premium markets).

Perfect fit because: Off-grid homes already value energy independence, household water needs (300-600 gallons/day) match well to solar pump capabilities, and residents are typically comfortable with sustainable technologies.

Typical setup: 4-8 panels (1,200-2,400W) → 1-2 HP DC pump → 200-400 foot well → 1,500-3,000 gallon storage tank → 1/2 HP pressure pump → household plumbing. Provides reliable water for family of 4-6 with normal usage.

Integration opportunity: Many off-grid homes already have solar panels for electricity. Adding a few more panels specifically for water pumping is cost-effective and keeps well pumping separate from household power (prevents well pump from draining house batteries).

ROI drivers: Avoiding $20,000-$50,000 power line installation, eliminating generator dependency, and increasing property value (homes with independent water systems command premium prices in rural markets).

Growing use case: Homeowners with grid-powered wells add solar pumps as backup for power outages (increasingly common in California). Hybrid AC systems can switch between grid and solar automatically.

Typical setup: Existing AC well pump gets solar upgrade: add 4-6 panels + inverter + transfer switch. During normal operation, pump runs on grid power. During outages, system automatically switches to solar. Pumps water to existing pressure tank or supplemental storage.

Cost: Adding solar backup to existing well: $3,000-$6,000 depending on pump size and whether batteries are included. Less expensive than whole-house generators ($8,000-$15,000) and provides water-specific resilience.

ROI drivers: Water security during multi-day outages (California wildfires, PSPS events), partial offset of well pumping electricity costs, and potential insurance discounts for wildfire-resilient systems.

Be honest about limitations: Solar pumps aren't ideal for every situation. Poor fits include:

• Very deep wells (>600 feet): Requires massive solar arrays; conventional pumps more economical
• Very high GPM needs (>25 GPM continuous): Solar system costs become prohibitive
• Heavily shaded locations: Trees or terrain blocking sun make solar inefficient
• Extremely cloudy climates: Pacific Northwest, coastal fog zones (solar still works but requires oversized arrays)
• Grid-connected shallow wells with low usage: Conventional 1/2 HP pump costs $2,500 installed, uses $20/month electricity. Solar costs $5,000-$7,000. Payback is 12-20 years—financially marginal.

Grundfos SQFlex Series

The gold standard. Grundfos dominates the premium solar pump market globally. Their SQFlex series (ranging from 0.5 HP to 3 HP) are engineered to exacting standards with premium materials, advanced electronics, and meticulous quality control.

What you get: Industry-leading efficiency (often 5-10% better than competitors), exceptional reliability (failure rates under 2% in first 5 years), integrated smart controllers with advanced diagnostics, ability to run on solar, AC grid, or DC battery power without modifications, and global service network.

What you pay: 30-60% premium over other brands. A Grundfos SQFlex 2.5-2 costs $2,800-$3,500 vs $1,800-$2,500 for comparable Lorentz or SunPumps model.

Worth it if: This is your primary water source for critical applications (full-time residence, commercial operation), you value peace of mind and long-term reliability, you want the best efficiency (lower solar array costs), or you're installing in a harsh environment (very deep well, difficult access for repairs).

Lorentz PS2 Series

The smart alternative. Lorentz offers German engineering quality at prices below Grundfos. They specialize exclusively in solar pumps (unlike Grundfos which is a general pump manufacturer), so all their technology is solar-optimized.

What you get: Excellent efficiency (comparable to Grundfos), very good reliability, superior MPPT controllers (some argue better than Grundfos), wide range of models covering 1-5 HP, and good documentation/support.

What you pay: Moderate premium positioning. Lorentz PS2-600 costs $2,200-$3,200, between SunPumps and Grundfos.

Worth it if: You want premium performance without Grundfos pricing, your well is 300-600 feet deep (Lorentz excels here), you're tech-savvy and appreciate their advanced monitoring capabilities, or you need higher horsepower (3-5 HP range where Lorentz shines).

SunPumps SDS Series

The American option. SunPumps has been manufacturing solar pumps in Florida since 1988—true pioneers in the industry. They offer solid, proven technology with strong customer support.

What you get: American manufacturing (matters to some buyers), good efficiency (10-15% below Grundfos but respectable), solid construction, responsive customer service and technical support, and 30+ years of track record.

What you pay: Mid-range pricing. SunPumps SDS-D-135 costs $1,800-$2,600.

Worth it if: You prefer American-made products, your well is 100-400 feet deep (their sweet spot), you value responsive US-based customer service, or you're a first-time solar pump buyer who wants hand-holding through installation.

RPS Solar Pumps (Robust Pump Systems)

The value leader. RPS provides economical solar pumps without the quality compromises of cheap imports. They're not the absolute best, but they're reliable and get the job done at the best price point.

What you get: Very competitive pricing, adequate efficiency (15-20% below premium brands but acceptable for most applications), decent reliability (5-8% failure rates—higher than Grundfos but far better than cheap imports), and good variety of models.

What you pay: Budget-friendly. RPS comparable models cost $1,200-$2,200, often 40-50% less than Grundfos.

Worth it if: You're budget-constrained, the application isn't mission-critical (vacation property, supplemental livestock water, irrigation), you're willing to accept slightly higher risk for significant cost savings, or you're installing multiple pumps (ranches with several remote wells—buy 3 RPS pumps for the cost of 2 Grundfos).

Peak sun hours: Southern California averages 5.5-6.5 peak sun hours daily (yearly average). Compare to Pacific Northwest (3-4 hours), Midwest (4-5 hours), or Northeast (4-4.5 hours). More sun = smaller solar arrays needed = lower cost.

Seasonal consistency: Unlike northern climates with dramatic summer/winter variation, SoCal maintains good solar production year-round. Winter still delivers 70-80% of summer output. Your pump works in December, not just July.

Clear skies: Low humidity and minimal cloud cover mean higher solar irradiance even on "average" days. A cloudy day in San Diego still outproduces a sunny day in Seattle.

Real-world impact: A 2,000W solar array in San Diego produces 10-12 kWh daily. The same array in Portland produces 6-8 kWh. That's 50-60% more water pumped in SoCal for the same investment.

Summer peaks align: Water demand peaks in July-September (irrigation, livestock consumption, household use). Solar production also peaks July-September. Perfect match—you get maximum water when you need it most.

Winter recharge: Demand drops November-March (less irrigation, cooler temps reduce livestock consumption). Solar production also drops but remains adequate for reduced needs. Wells recharge during winter rains while demand is low.

Contrast with other regions: Northern climates have peak water demand in summer but weak solar production in winter when livestock still need water. Hawaii has great sun but also high winter rainfall reducing well demand. SoCal's Mediterranean climate creates ideal solar-water dynamics.

• Large rural properties: San Diego and Riverside counties have extensive rural areas (Anza, Aguanga, Valley Center, Ramona, Julian, Borrego Springs) where grid power is expensive or unavailable. Perfect solar pump territory.
• High electricity costs: California electricity rates ($0.25-$0.45/kWh) are among highest in nation. Solar pump ROI is stronger when displacing expensive grid power.
• Wildfire resilience: Power shutoffs (PSPS events) during wildfire season leave grid-powered wells useless. Solar pumps with battery backup provide critical water security.
• Property values: Water independence increases rural property values significantly in SoCal. Buyers pay premium for properties with solar well systems.
• Experienced installers: Southern California has numerous solar pump installers with decades of experience. Quality installation is readily available.
• Favorable regulations: California actively supports renewable energy. Permitting for solar pumps is streamlined, and inspection processes are well-established.

Anza valley ranches: Dozens of cattle ranches in Anza valley operate entirely on solar-pumped wells. Some have been running 15+ years with minimal maintenance. Typical setup: 8-10 panels, 2 HP pump, 350-foot well, 3,000-gallon tanks, supporting 50-100 head of cattle.

Valley Center horse properties: The equestrian community in Valley Center has widely adopted solar well pumps. Lower power line installation costs ($8,000-$15,000 typical) made solar competitive even at moderate distances from grid. Many properties report complete satisfaction after 8-10 years of operation.

Julian off-grid homes: High-elevation Julian has limited grid infrastructure. Solar pumps are standard for new construction. Cold winters require frost protection, but systems perform excellently with proper installation.

Borrego Springs agriculture: Desert conditions (7+ peak sun hours daily!) make Borrego Springs ideal for solar pumps. Growers use solar to irrigate date palms, citrus, and vegetables with excellent results.

Step 1: Site Assessment and System Design (1-2 days)

• Well testing: measure depth, static water level, pumping level, recovery rate, current GPM
• Water demand calculation: household + livestock + irrigation needs
• Solar site evaluation: sun exposure, shading analysis, optimal panel orientation
• Storage planning: tank location, size, elevation for gravity feed
• System specification: pump selection, panel count, controller type, battery decision
• Cost estimate and proposal

Step 2: Permitting and Approvals (1-3 weeks)

• Building permit for electrical work (if required)
• Solar installation permit (varies by county)
• Well modification permit (if upgrading existing well)
• Utility interconnection (if hybrid grid-solar system)

Step 3: System Installation (1-3 days)

• Pump installation: pull old pump, install new drop pipe, power cable, safety cable
• Solar panel setup: mount racking, install panels, wire panels to controller
• Controller and wiring: connect controller to pump and optionally to battery bank
• Storage tank: position, connect tank to pump, setup overflow/protection
• Testing and commissioning: check all systems, adjust controller settings, validate safety features

Step 4: System Testing and Handover (1 day)

• Performance Verification: Ensure system meets flow rate and head specifications
• Owner Training: Maintenance tips, controller settings, and troubleshooting
• Installation Documentation: Hand over all manuals, warranties, and installation reports
